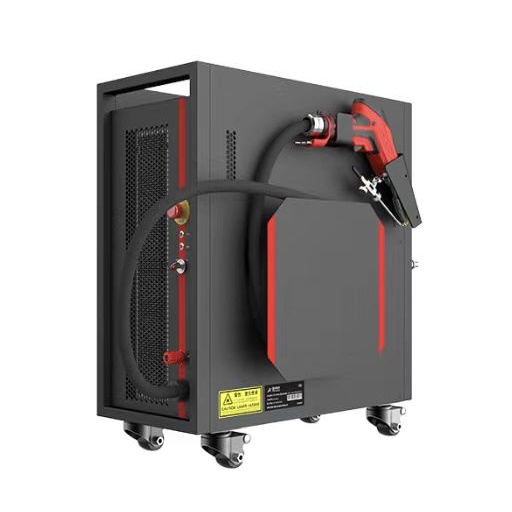

Model X4H Handheld Portable Air Cooling Fiber Laser Welding and Cutting 3-in-1 Machine

The X series handheld air cooling fiber laser welding machine is a very classic equipment with high electro-optical conversion efficiency and superior beam quality. Meanwhile, due to the coiled nature of the fiber, the structure of the fiber laser is more compact. This series of products integrates advantages such as high electro-optical conversion efficiency, high output power, superior beam quality, compact structure, maintenance free, and low cost. It can be widely used in industrial processing, scientific research, and other scenarios such as metal welding and cutting.

The Mini air cooling lazer welding machine is 3 in 1 functions: welding, cutting and weld bead cleaning.

Features:

• Working mode: continuous laser and pulsed laser

• Can be equipped with a robotic arm

• Wobble welding

• Big pump engine, surging power, globally leading semiconductor laser pump source in the industrial field

• Strong air cooling, real-time welding without preheating

• Maintain sufficient power margin at rated power output state

• Industry leading optical technology and control solutions achieve high efficiency, low energy consumption, and deep welding seams

• Global top high-performance chips ensure stable and reliable laser quality

• High quality pump source + High performance laser chips → Efficient heat sink to solve heat dissipation problems

Unlike traditional welding methods, portable air-cooled welding machines have a smaller volume and are more suitable for outdoor work. The grounding point does not need to be completely cleaned, and even beginners can reliably weld materials of different thicknesses and conductivity. In addition, the heat affected zone is greatly reduced, while also reducing the grinding and polishing required for traditional welding methods, thereby improving productivity, reducing waste, and lowering the cost of each workpiece.

Small laser welding machine, specialized for general workers without welding experience, with fast welding speed, firm welding seams, weight and volume better than water-cooled handheld laser welding machines, improving the mobility of the entire machine.

Advantages of portable air-cooled laser welding machine:

1. High photoelectric conversion efficiency

2. High output power and superior beam quality

3. High power stability, high reliability, and long service life

4. All fiber structure, compact, maintenance free, and low cost

5. Compared to traditional argon arc welding technology, laser welding has a greater heat fusion effect on thin plates, is prone to deformation, and is more troublesome in post-processing. Laser welding has a smaller thermal impact on thin plates, is less prone to deformation, and the weld bead is uniform and smooth, requiring almost no post-processing.

6. You can quickly learn how to operate, saving you expensive technical labor costs.

7. Processing is environmentally friendly, and red light positioning is used for handheld fiber optic head welding. The handheld processing head is lightweight, with high worker efficiency and less fatigue during long-term welding.

Weldable materials: stainless steel, carbon steel, brass, aluminum alloy, galvanized sheet, aluminum zinc plate, alloy steel, silicon steel plate, pickling plate, titanium alloy, manganese steel, etc.

Air cooling laser welder is widely used in various industries. Welding in stainless steel, carbon steel, aluminum and other metal materials can perfectly replace the traditional electric welding process, with simple operation, beautiful weld and fast welding speed. The workpiece can be welded at any angle.

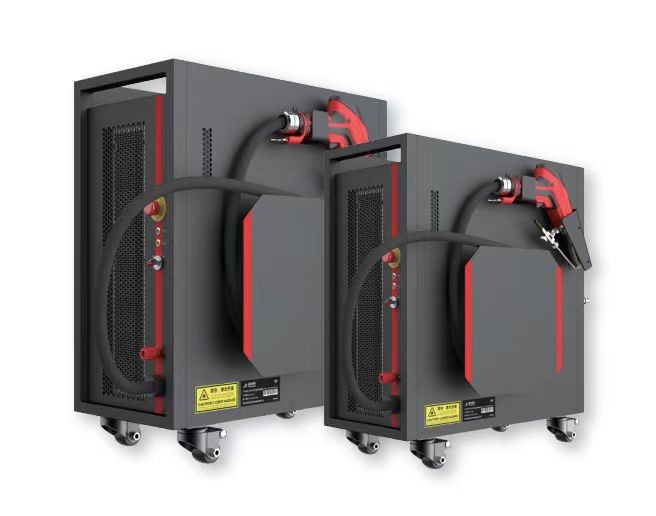

The air-cooling lazer welding machine with small dimension, light weight only 41kg, has the wheel on the machine, easy to move. Air cooling, no need the water chiller, therefore also no need to worry the freeze in winter. Give the customer better using experience feelings.
