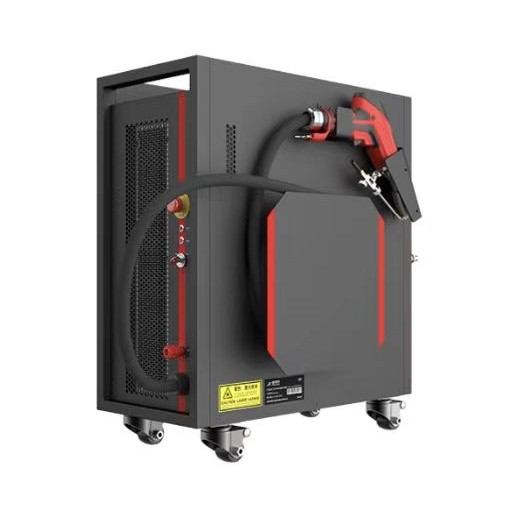

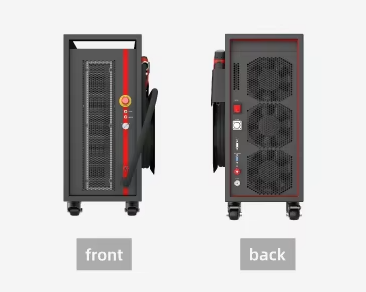

Model X3 Air Cooled Mini Laser Welding Machine with Wire Feeder Portable Handheld Laser Welder

Model X3 Air Cooled Mini Laser Welding Machine with Wire Feeder Portable Handheld Laser Welder


Model X3 Air Cooled Mini Laser Welding Machine with Wire Feeder Portable Handheld Laser Welder

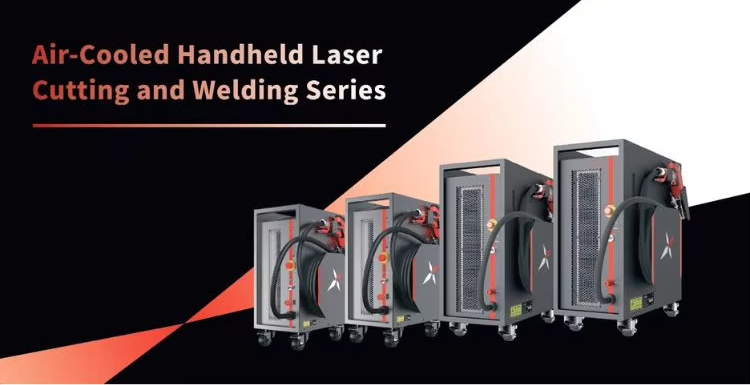

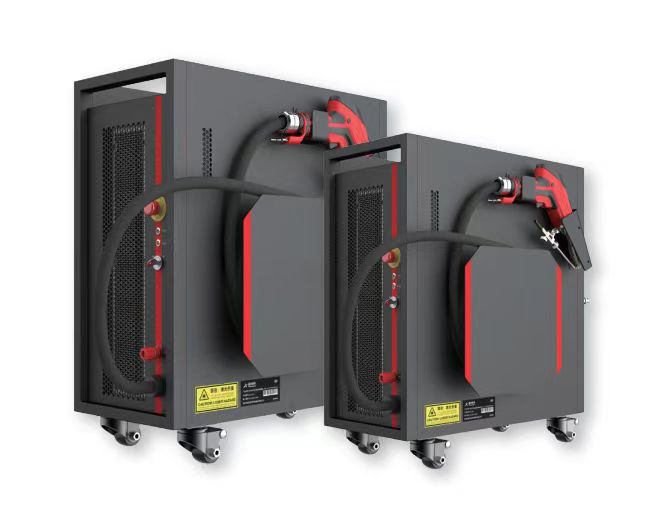

The X series handheld fiber optic air-cooled laser welding machine is a very classic equipment with high electro-optical conversion efficiency and superior beam quality. Meanwhile, due to the coiled nature of the fiber, the structure of the fiber laser is more compact. This series of products integrates advantages such as high electro-optical conversion efficiency, high output power, superior beam quality, compact structure, maintenance free, and low cost. It can be widely used in industrial processing, scientific research, and other scenarios such as metal welding and cutting.

air cooling laser welding machine factory.jpg

Working mode: continuous laser and pulsed laser

Can be equipped with a robotic arm

Wobble welding

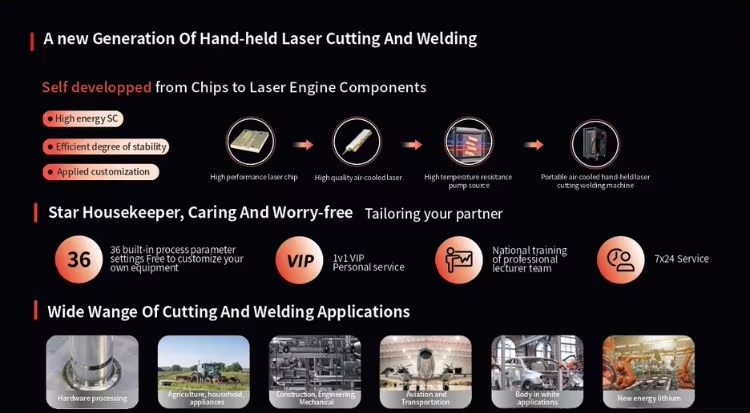

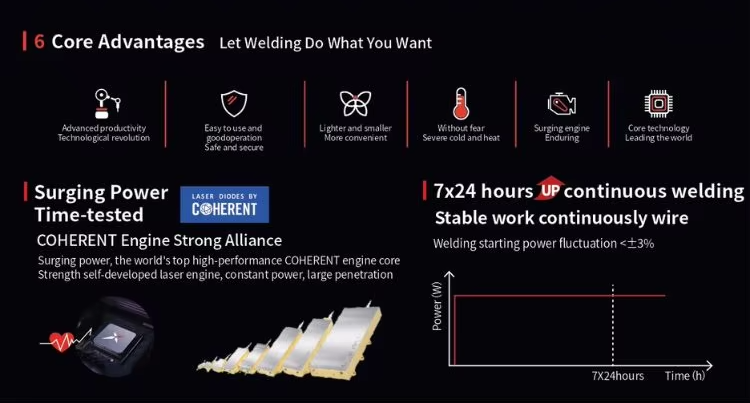

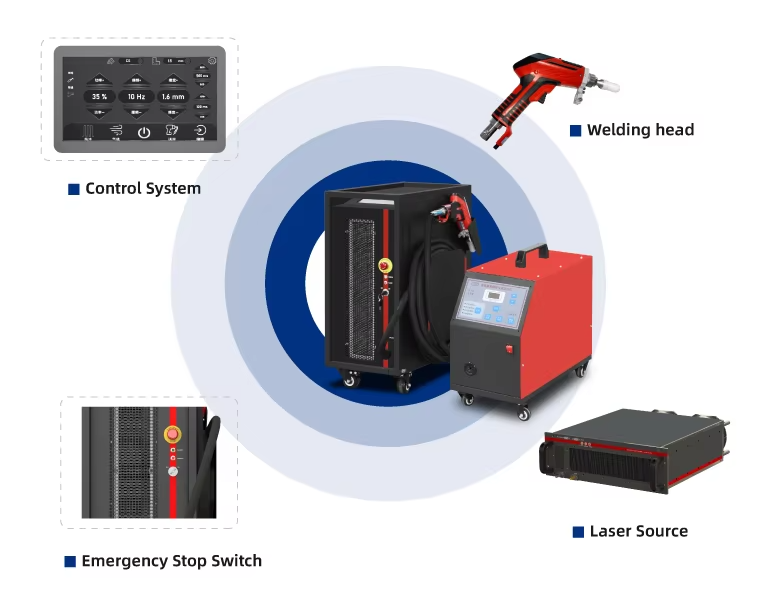

Big pump engine, surging power, globally leading semiconductor laser pump source in the industrial field

Strong air cooling, real-time welding without preheating

Maintain sufficient power margin at rated power output state

Industry leading optical technology and control solutions achieve high efficiency, low energy consumption, and deep welding seams

Global top high-performance chips ensure stable and reliable laser quality

High quality pump source + High performance laser chips → Efficient heat sink to solve heat dissipation problems


portable laser welding machine.png


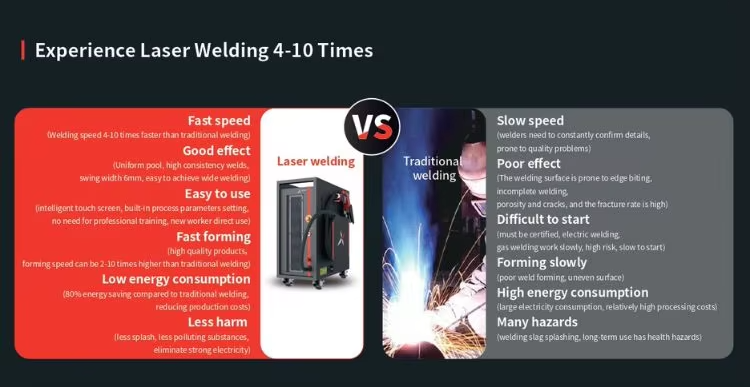

Unlike traditional welding methods, portable air-cooled welding machines have a smaller volume and are more suitable for outdoor work. The grounding point does not need to be completely cleaned, and even beginners can reliably weld materials of different thicknesses and conductivity. In addition, the heat affected zone is greatly reduced, while also reducing the grinding and polishing required for traditional welding methods, thereby improving productivity, reducing waste, and lowering the cost of each workpiece.



Small laser welding machine, specialized for general workers without welding experience, with fast welding speed, firm welding seams, weight and volume better than water-cooled handheld laser welding machines, improving the mobility of the entire machine.


portable laser welder.png

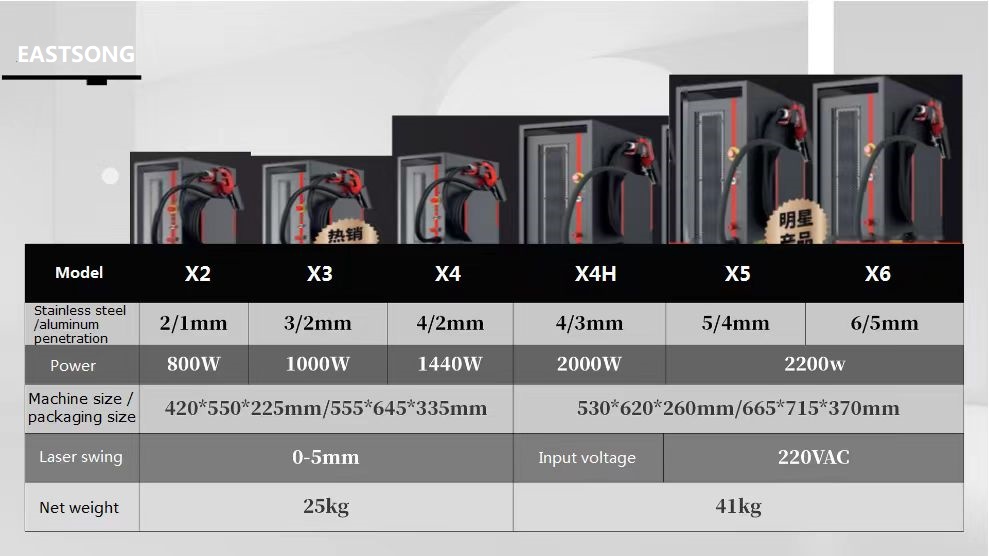

Model

X3

X4

X4H

X5

Center wavelength

1080±10nm

FWHM spectral bandwidth

10nm

Divergence angle

0.06NA

Light spot energy distribution

Gaussian

Work mode

CW & Pulse

Maximum modulation frequency

5kHz

10kHz

10kHz

10kHz

Output power instability

3%(24 hours)

3%(24 hours)

3%(24 hours)

5%(24 hours)

Power adjustment range

10%-100%

Indicate laser parameters

650nm≥1mW

Output fiber core diameter

14μm

14μm

20μm

20μm

Armor cable fiber length

5m

5m

5m

5m/10m

(Special custom)

Output connector

XphotonicsQBH

Fiber bending radius

200mm

200mm

200mm

300mm

Input voltage

Single phase 220V±10%; 50/60HZ

Power consumption

≤10A 2200W

≤14A 3000W

≤19A 4500W

≤19A 4500W

Mechanical Dimensions

420*255*550mm

420*255*550mm

525*255*620mm

525*255*620mm

N.W.

25KG

25KG

41KG

42KG

air cooled laser welding machine  manufacturers.jpg


Advantages of portable air-cooled laser welding machine:



1. High photoelectric conversion efficiency

2. High output power and superior beam quality

3. High power stability, high reliability, and long service life

4. All fiber structure, compact, maintenance free, and low cost

5. Compared to traditional argon arc welding technology, laser welding has a greater heat fusion effect on thin plates, is prone to deformation, and is more troublesome in post-processing. Laser welding has a smaller thermal impact on thin plates, is less prone to deformation, and the weld bead is uniform and smooth, requiring almost no post-processing.

6. You can quickly learn how to operate, saving you expensive technical labor costs.

7. Processing is environmentally friendly, and red light positioning is used for handheld fiber optic head welding. The handheld processing head is lightweight, with high worker efficiency and less fatigue during long-term welding.



Weldable materials: stainless steel, carbon steel, brass, aluminum alloy, galvanized sheet, aluminum zinc plate, alloy steel, silicon steel plate, pickling plate, titanium alloy, manganese steel, etc.


self cooling laser welding machine.png

self-cooled laser welding machine.png

self-cooling laser welding machine.png

self cooled laser welding machine.png

self-cooling laser welder.png


Air cooling laser welder is widely used in various industries. Welding in stainless steel, carbon steel, aluminum and other metal materials can perfectly replace the traditional electric welding process, with simple operation, beautiful weld and fast welding speed. The workpiece can be welded at any angle.



Small machine dimension, light weight only 25kg, has the wheel on the machine, easy to move. Air cooling, no need the water chiller, therefore also no need to worry the freeze in winter. Give the customer better using experience feelings.


Handheld light Laser Welding head which makes operator work more longer time per day. There have double protective lens, and the Temperature Sensor inside the laser head, which give the biggest protection.
