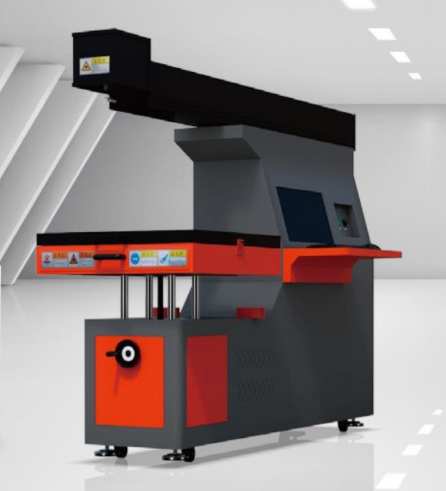

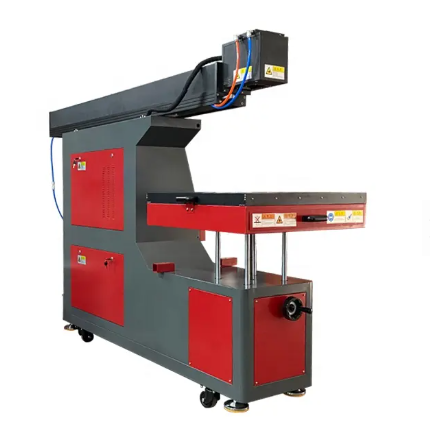

3D Dynamic Focusing Co2 Laser Marking Machine

3D Dynamic Focusing Co2 Laser Marking Machine


3D Dynamic Focusing Co2 Laser Marking Machine


High Speed 3D Dynamic CO2 Scanner Laser Marking Machine Cutting and Engraving


Applicable materials:

Leather, rubber, wood, bamboo, organic glass, tile, plastic, marble, jade, crystal, cloth and other non-metallic materials.

                             3D Dynamic focusing co2 laser marking machine 4.png

1

Laser Source Power

 80W/100W/130w/150W optional

2

Laser Wavelength

CO2 Laser 10.64μm

3

3D Dynamic Focusing System

CK Galvo  3D

4

Marking Area

400 * 400mm (F=450mm)

500 * 500mm (F=550mm)

600 * 600mm ( F=650mm) optional

5

Chiller

CW5000/CW5200

6

Computer

Industry computer with Windows xp (optional)

7

Control Software

3D Laser

8

Worktable Type

Standard Worktable

9

Marking Speed

7000mm/s

10

Repetition Precision

0.01mm

11

Laser Frequency

20kHz~200kHz

12

Min.Letter Size

3mm

13

Power Consumption

≤3kW

14

File Formats

CAD/DWG/DXF/EPS/AI/CDR/BMP/JPEG/PNG/TIF/STL

15

Power Supply

110/220V ± 10%, 50/60HZ

16

Cooling Way

Circulation of Water Cooling

17

Warranty

2 years for the whole machine

18

Package size

2450*1000*1750mm(L*W*H)


                           3D Dynamic focus co2 laser marking machine 5.png

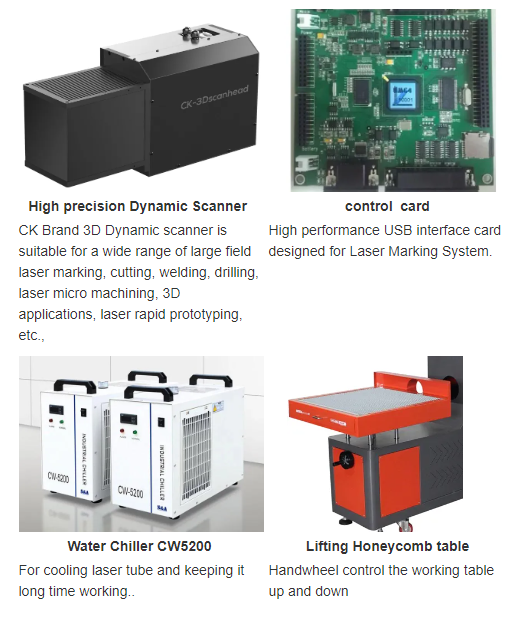

Main Feature:

1). Red light preview, clear marking position.

2). Best quality RECI laser tube, useful life more than 10,000 hours.

3). High speed galvo scanner, fast speed, high precision, stable function.

4). Full set imported optic lenses, low consumption,good focus performance.

5). Automatic number jump and counting function.

6). Z-axis lifting to get best laser spot  and laser intensity for different marking area.


           3D Dynamic focus co2 laser marking machine 6.png
