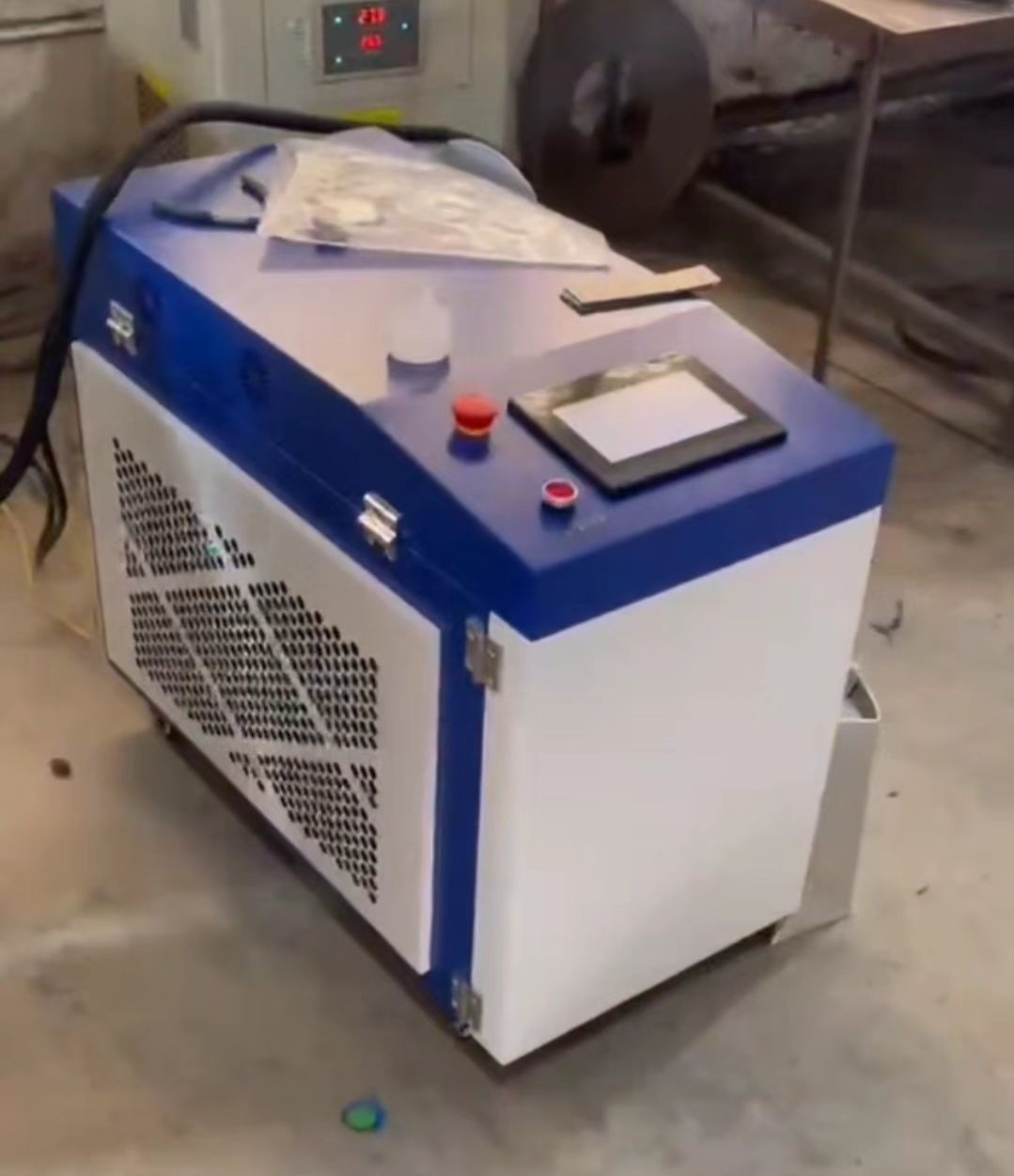

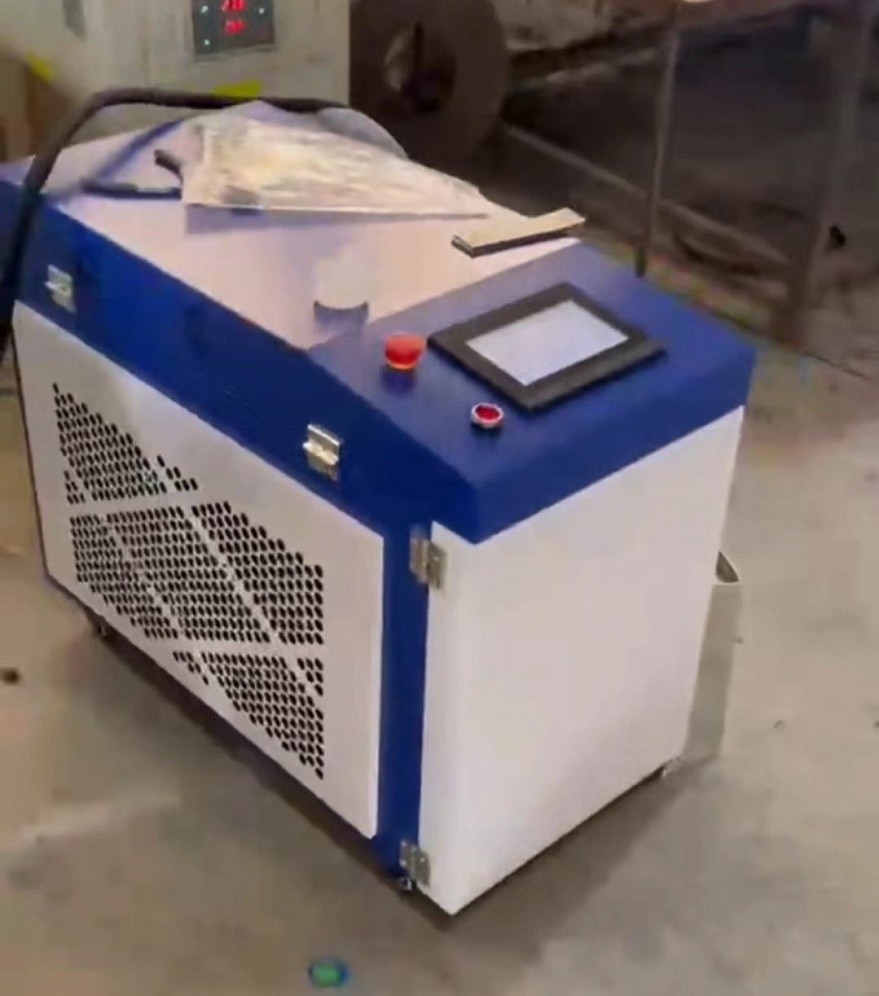

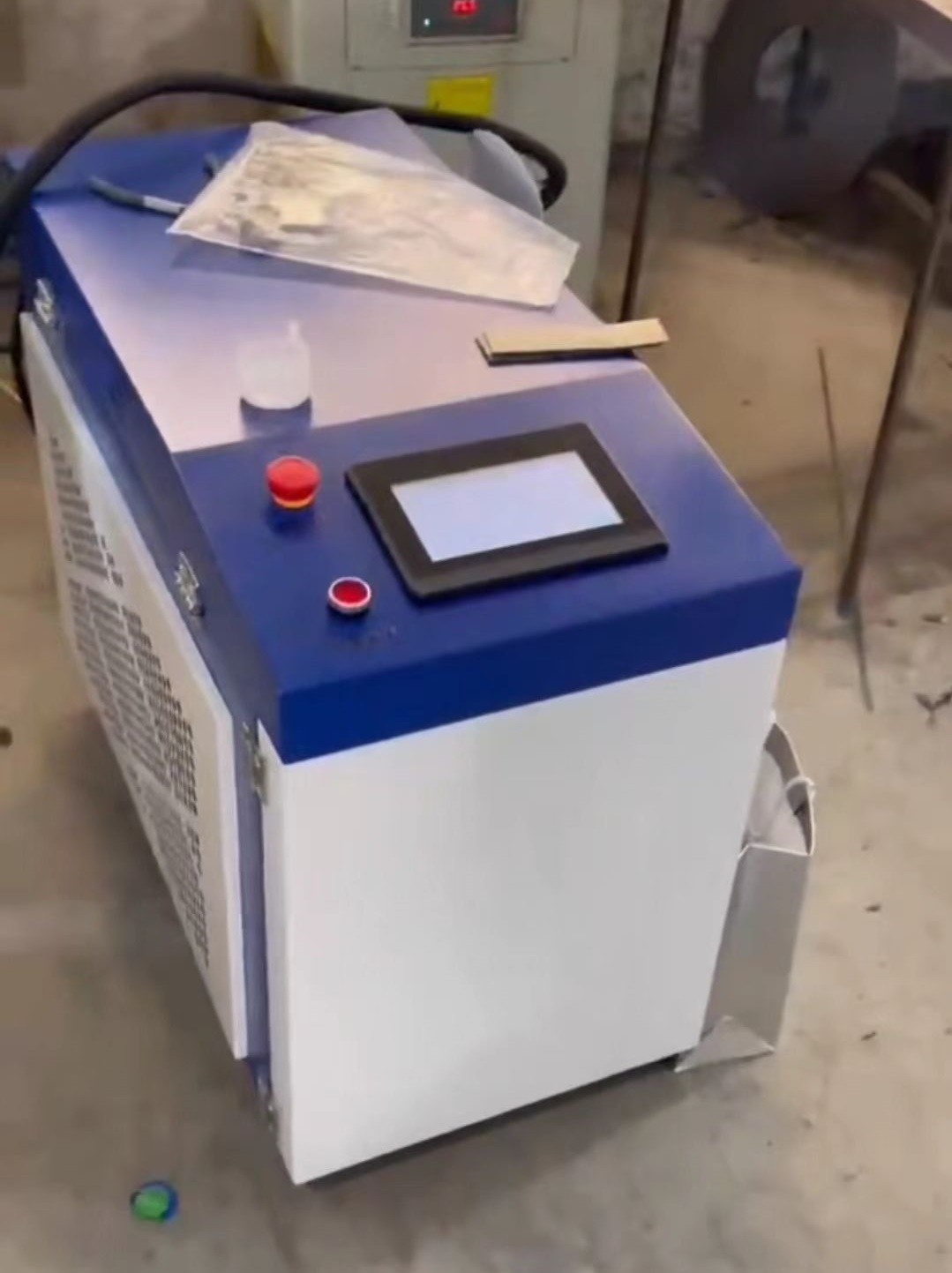

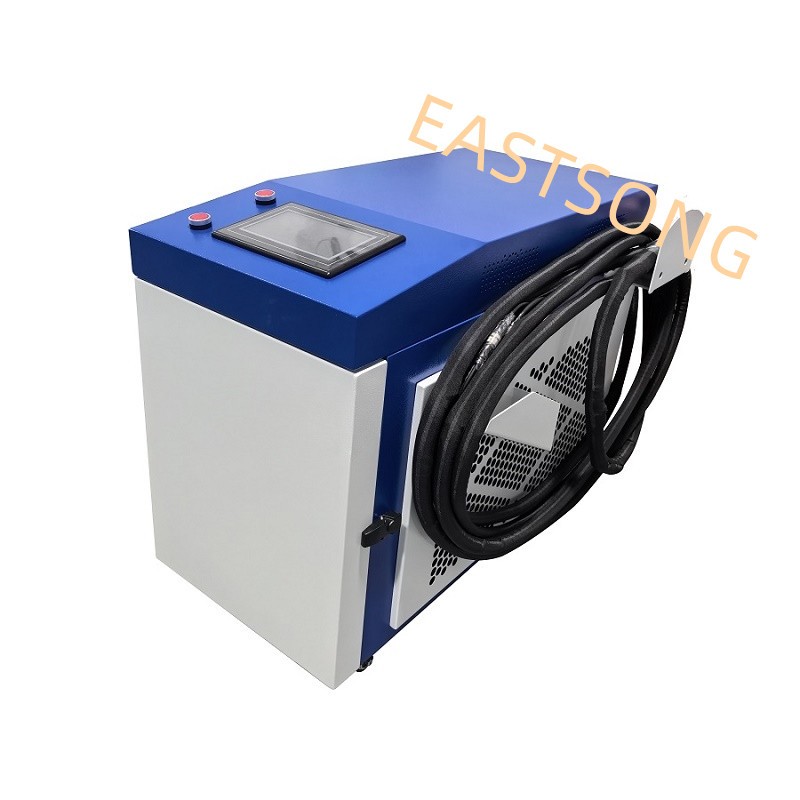

Fast Welding Speed Water Cooled QCW Pulse Laser Welding Machine for Thin Plate Welding
A QCW (Quasi-Continuous Wave) Pulse Laser Welding Machine is an advanced tool designed for high-precision welding applications, combining pulsed laser technology with quasi-continuous operation.
Key Features & Working Principle
- Quasi-Continuous Wave (QCW): Delivers high-energy pulses with longer durations (microseconds to milliseconds) compared to standard pulsed lasers, allowing deeper penetration while managing heat input.
- Pulsed Operation: Emits laser energy in controlled bursts, reducing thermal distortion and enabling precise control over weld parameters.
- High Peak Power: Suitable for materials requiring significant energy input without prolonged heat exposure.
Applications
- Electronics/Microdevices: Welding delicate components (sensors, batteries) in smartphones, EVs, and medical implants.
- Aerospace: Joining heat-sensitive alloys (titanium, Inconel) in turbine blades or structural parts.
- Automotive: Battery tab welding for electric vehicles and hermetic sealing of components.
- Jewelry/Precision Engineering: Fine welding of reflective materials (gold, silver) with minimal aesthetic impact.
Advantages
- Precision & Control: Adjustable pulse duration, frequency, and energy for tailored welds.
- Minimal Thermal Impact: Reduces heat-affected zones (HAZ), preserving material integrity.
- Material Versatility: Effective on metals (stainless steel, aluminum, copper), ceramics, and dissimilar material combinations.
- Non-Contact Process: Eliminates mechanical distortion, ideal for fragile components.
Key Parameters
- Pulse Duration: Ranges from 0.1–20 ms, affecting penetration depth.
- Frequency: Typically 1–500 Hz, balancing speed and heat management.
- Peak Power: Up to kilowatt levels for robust welds.
- Spot Size: 50–500 µm, enabling fine or broad welds.
Comparison with Other Lasers
- vs. CW Lasers: QCW offers higher peak power in pulses, reducing heat buildup for sensitive materials.
- vs. Short-Pulse Lasers: Longer pulses allow deeper penetration, ideal for thicker materials.
QCW pulse laser welding machines excel in industries demanding precision, minimal thermal distortion, and versatility. While costly, their benefits in quality and efficiency justify their use in high-value sectors like aerospace, medical, and electronics. Continuous advancements in automation and laser technology are expanding their applicability and accessibility.
